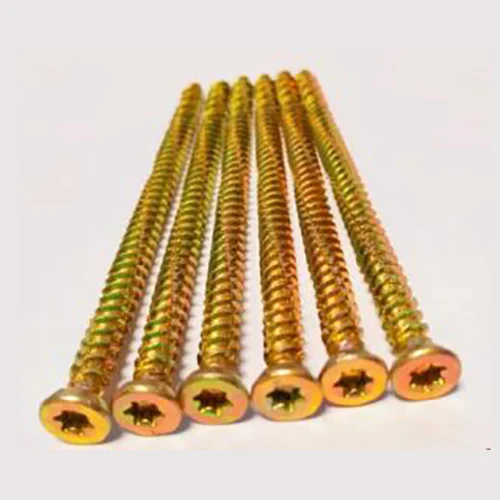

Concrete screws are precision-engineered fasteners specifically designed to anchor materials such as metal, wood, or plastic securely into concrete, masonry, or block surfaces. Unlike traditional expansion anchors, concrete screws create their own internal thread during installation, ensuring maximum holding power with minimal effort. They are a vital component in the modern construction and renovation industries where reliability, speed, and safety are top priorities.
The primary appeal of concrete screws lies in their simplicity and versatility. They require no additional anchors or sleeves, and can be easily removed and reinstalled without compromising the substrate’s integrity. This makes them ideal for structural projects, fixture installations, and maintenance applications where durability and precision matter most.
Concrete screws are commonly used for:
Fastening electrical boxes, conduits, or switch plates
Securing steel or wood framing to concrete walls
Mounting machinery or heavy-duty shelving
Anchoring railings, handrails, or safety barriers
Installing exterior fixtures or insulation boards
The evolution of concrete screw technology reflects the construction industry's shift toward faster, safer, and more sustainable fastening solutions. Their growing demand demonstrates the global preference for tools that combine strength with efficiency.
Concrete screws operate by cutting their own thread into pre-drilled holes in concrete or masonry, locking securely through friction and mechanical interlock. The helical design allows for a tight fit, preventing loosening under vibration or load stress. This self-tapping mechanism eliminates the need for additional inserts, significantly reducing installation time and cost.
Below is a detailed table summarizing the standard specifications and parameters of high-performance concrete screws:
| Parameter | Specification | Description |
|---|---|---|
| Material | Carbon Steel / Stainless Steel | Offers corrosion resistance and tensile strength |
| Surface Finish | Zinc-Plated / Blue Ruspert / Galvanized | Enhances rust protection and durability |
| Head Type | Hex, Flat, or Countersunk | Adaptable to various installation needs |
| Drive Type | Torx / Phillips / Hex Socket | Ensures better torque control |
| Thread Design | High-Low Double Thread | Provides superior grip in hard substrates |
| Diameter Range | 3/16" – 3/8" (4.8mm – 10mm | Suitable for light to heavy-duty anchoring |
| Length Range | 1-1/4" – 6" (30mm – 150mm) | Covers multiple application depths |
| Tensile Strength | Up to 900 N/mm² | Guarantees exceptional load-bearing capacity |
| Pull-Out Resistance | 1,200 – 2,000 lbs | Maintains stability under dynamic loads |
Each parameter above determines how efficiently a concrete screw performs in various environments. For instance, stainless steel screws are preferred in outdoor or high-moisture conditions, while zinc-plated variants are ideal for indoor projects.
Why are these specifications important?
They directly impact installation quality and long-term safety. Choosing the correct diameter and thread type ensures proper engagement with the base material, reducing the risk of pull-out failure. The right head style and drive type also simplify installation, especially in tight or overhead spaces.
The debate between concrete screws and traditional anchors often centers on cost-effectiveness, reliability, and ease of installation. Concrete screws offer several distinct advantages that have positioned them as the preferred solution across construction industries.
Key Advantages of Concrete Screws:
No Expansion Pressure: Unlike wedge or sleeve anchors, concrete screws do not exert outward pressure, reducing the risk of cracking delicate substrates.
Easy Installation and Removal: They can be installed with a standard drill and removed easily without damaging the base material, allowing for repositioning or reinstallation.
Superior Load Capacity: High tensile and shear strength ensures stability under heavy loads.
Time and Labor Efficiency: Fewer components mean faster installation, saving both time and labor costs.
Versatile Applications: Suitable for both indoor and outdoor use across diverse industries including infrastructure, manufacturing, and residential construction.
Enhanced Aesthetic Options: Flat or countersunk heads offer a clean finish for visible applications.
How do these advantages influence modern construction trends?
Today’s construction environment demands speed without sacrificing structural integrity. With global pressure for sustainable and modular building systems, the ability to install and remove fasteners without damaging materials aligns with eco-efficient construction standards. Furthermore, the rise of prefabricated components increases the need for fasteners that can deliver consistent performance under variable site conditions.
Concrete screws also integrate seamlessly with advanced power tools, making them ideal for automated assembly lines or high-precision projects. This compatibility with modern equipment reflects their adaptability to future construction technologies such as robotic fastening and digital torque monitoring.
As the global construction sector evolves, concrete screws are being re-engineered to meet higher safety standards, sustainability goals, and technological integration. The future trends shaping this market focus on three major innovations: smart fastening, eco-friendly coatings, and high-performance materials.
Smart Fastening Systems:
Emerging technologies are introducing sensors into fasteners that monitor torque, vibration, and tension in real-time. Such innovations help ensure proper installation and maintenance, reducing the risk of failure due to human error.
Sustainable Materials and Coatings:
With increasing emphasis on environmental responsibility, manufacturers are adopting zinc-aluminum and ceramic-based coatings that are lead-free and offer enhanced corrosion resistance. The transition toward recyclable materials also aligns with global sustainability certifications such as LEED.
Advanced Thread Design:
New engineering models are optimizing thread geometry to maximize pull-out strength while minimizing drilling resistance. This innovation not only improves efficiency but also extends tool life.
Customized Solutions for Industry Segments:
Construction, solar, and transportation sectors are demanding tailor-made concrete screws that meet specific load and environmental conditions. Manufacturers are responding with precision-engineered options designed for energy infrastructure, rail systems, and green buildings.
As the industry moves toward smart infrastructure and automation, the role of high-quality fasteners becomes even more critical. Concrete screws, due to their reliability and performance, are set to remain indispensable components in global construction advancements.
Q1: What size drill bit should be used for installing concrete screws?
A1: The drill bit size depends on the diameter of the screw. For example, a 3/16" (4.8mm) screw typically requires a 5/32" (4mm) drill bit, while a 1/4" (6.3mm) screw requires a 3/16" (4.8mm) bit. Always ensure the hole depth exceeds the screw length by at least ¼ inch to prevent obstruction during installation.
Q2: Can concrete screws be reused after removal?
A2: Yes, concrete screws can often be reused if the threads remain intact and the base material is not damaged. However, reusing screws in the same hole may reduce holding strength, so it’s advisable to shift the screw slightly or re-drill a new hole for maximum grip.
In today’s demanding construction landscape, precision, safety, and performance define the difference between an average project and an exceptional one. Concrete screws have revolutionized how builders approach anchoring systems, offering unparalleled efficiency and reliability across various applications.
HAIYAN Bolt stands at the forefront of this evolution, delivering concrete screws manufactured under rigorous quality standards with precision-engineered materials and advanced surface treatments. The company’s commitment to innovation, strength, and sustainability ensures that every fastener contributes to the longevity and safety of your structure.
Whether for residential, industrial, or infrastructure projects, HAIYAN Bolt provides the dependable fastening solutions that today’s construction professionals trust.
For detailed product specifications, technical support, or customized solutions, contact us to learn more about our full range of high-performance concrete screws.
