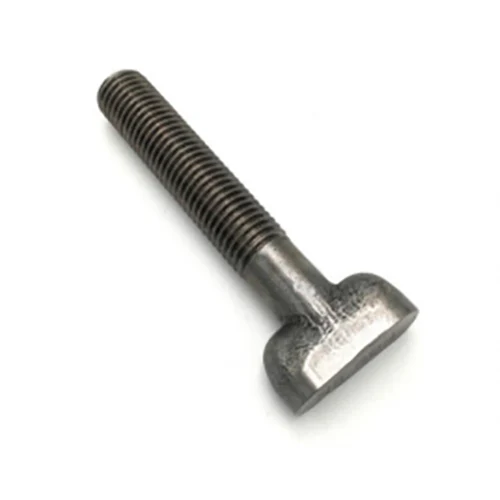

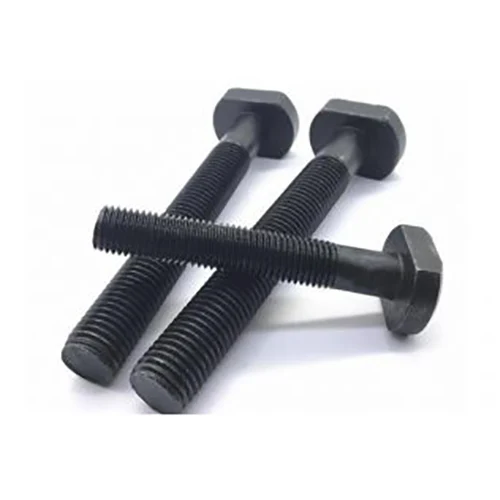

A T head bolt, also known as a T shaped bolt, is a type of bolt with a unique T shaped head. Here is a detailed introduction:
Structure and Characteristics: A T bolt consists of a threaded shank and an elongated head. The head extends on either side of its axis in a first direction substantially greater than its extension in a second direction. This elongated head allows it to be twisted from a position where it engages a slot in a channel to a slot - disengaging position. Additionally, some T bolts have projections that ensure the bolt can be easily removed from a T slot throat after being twisted.
Materials: T bolts are typically made of materials such as carbon steel, stainless steel, and alloy steel. Carbon steel T bolts are commonly used in general - purpose applications. Stainless steel T bolts, especially those made of SUS304 or other corrosion - resistant stainless steels, are suitable for use in environments where corrosion resistance is required, such as in outdoor or humid conditions. Alloy steel T bolts offer high strength and are often used in applications that require greater load - bearing capacity.
Types: There are several types of T bolts, including DIN 186 T - shaped square - neck bolts and DIN 188 T shaped double - neck bolts. In addition, there are also T - slot bolts, which are designed to be used in T - slot grooves.
Applications: T bolts are widely used in various industries. They can be directly placed into aluminum - profile grooves and can automatically position and lock during the installation process. They are often used in conjunction with flange nuts and are the standard matching connection parts for installing angle pieces. They are commonly used in the construction of aluminum - alloy frames, such as in the assembly of industrial equipment frames, curtain walls, and exhibition booths. They are also used in woodworking, for example, to connect wooden components in some furniture manufacturing or wood - structure construction. In the machinery manufacturing industry, T bolts are used to fix workpieces on machine - tool tables.
HAIYAN BOLT CO., LTD. produce both carbon steel and stainless T Bolt.
