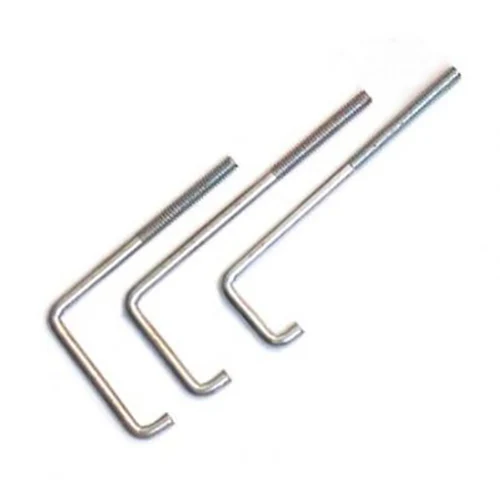

J Shape Foundation Bolt

The J shape foundation bolt (or J-bolt) is a heavy-duty anchoring fastener designed for securing structural components, machinery, or equipment to concrete foundations. Its distinctive J-shaped hook provides superior pull-out resistance and load distribution, making it ideal for applications requiring high tensile strength and stability.

Key Features:

Material: Typically made from carbon steel (e.g., Grade 4.8, 8.8) or stainless steel (A2/A4-304/316) for corrosion resistance.

Design: The curved "J" end embeds into concrete or grout, while the threaded end allows for nut tightening.

Standards: Complies with international standards like DIN, ASTM, or ISO.

Load Capacity: Engineered to withstand dynamic loads, vibrations, and shear forces.

Applications:

Anchoring steel columns, beams, and heavy machinery.

Construction of power plants, bridges, and industrial facilities.

Securing conveyor systems, HVAC units, and structural frameworks.

Installation:

Embed the J-hook end into wet concrete or epoxy grout.

Align the threaded portion vertically before the concrete sets.

After curing, tighten nuts/washers to secure the mounted structure.

Advantages:

Excellent resistance to uplift forces.

Versatile for permanent or semi-permanent installations.

Customizable in length, diameter, and thread pitch.

Note: Proper embedment depth and concrete quality are critical for optimal performance.
